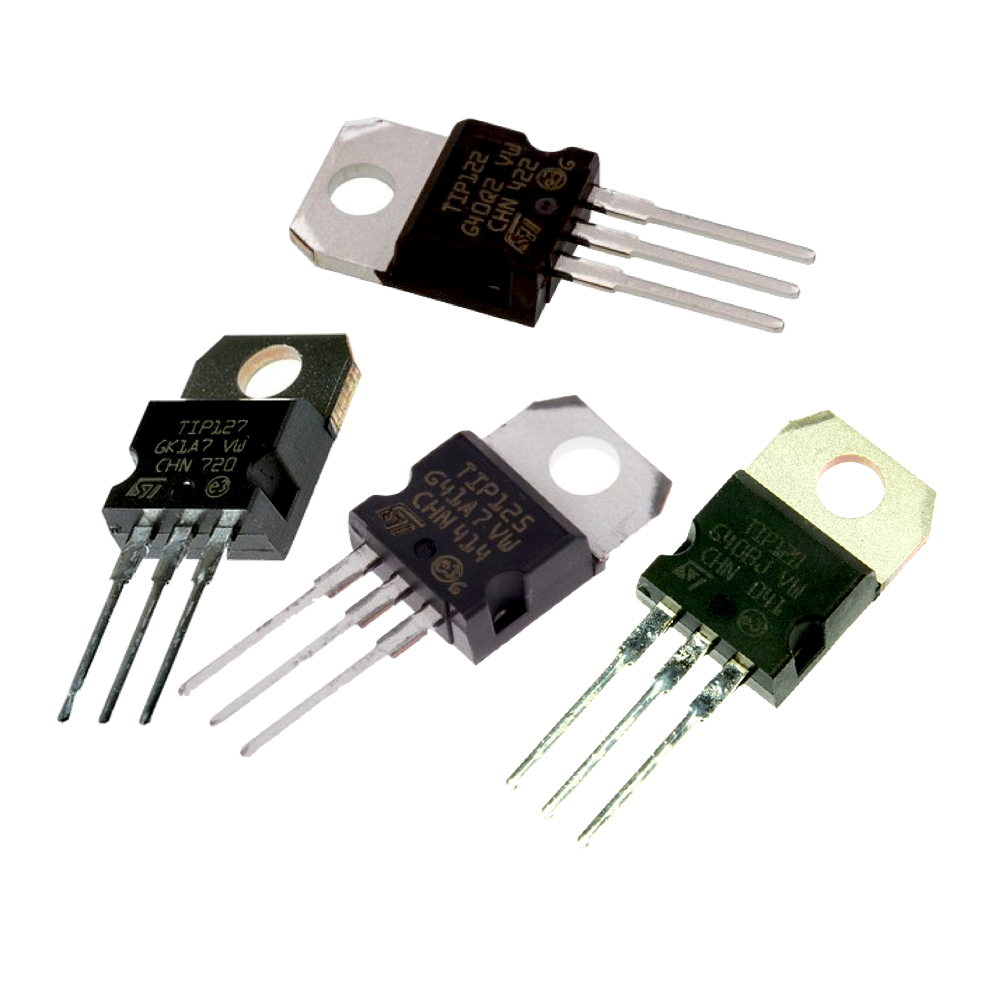

Medium-Power Complementary Silicon Transistors TIP12X (PACK OF 10)

280.00325.00 Excl. of GST

DARLINGTON PAIR TRANSISTORS 5 AMPERE
COMPLEMENTARY SILICON POWER 65 WATTS, 60−100 VOLTS

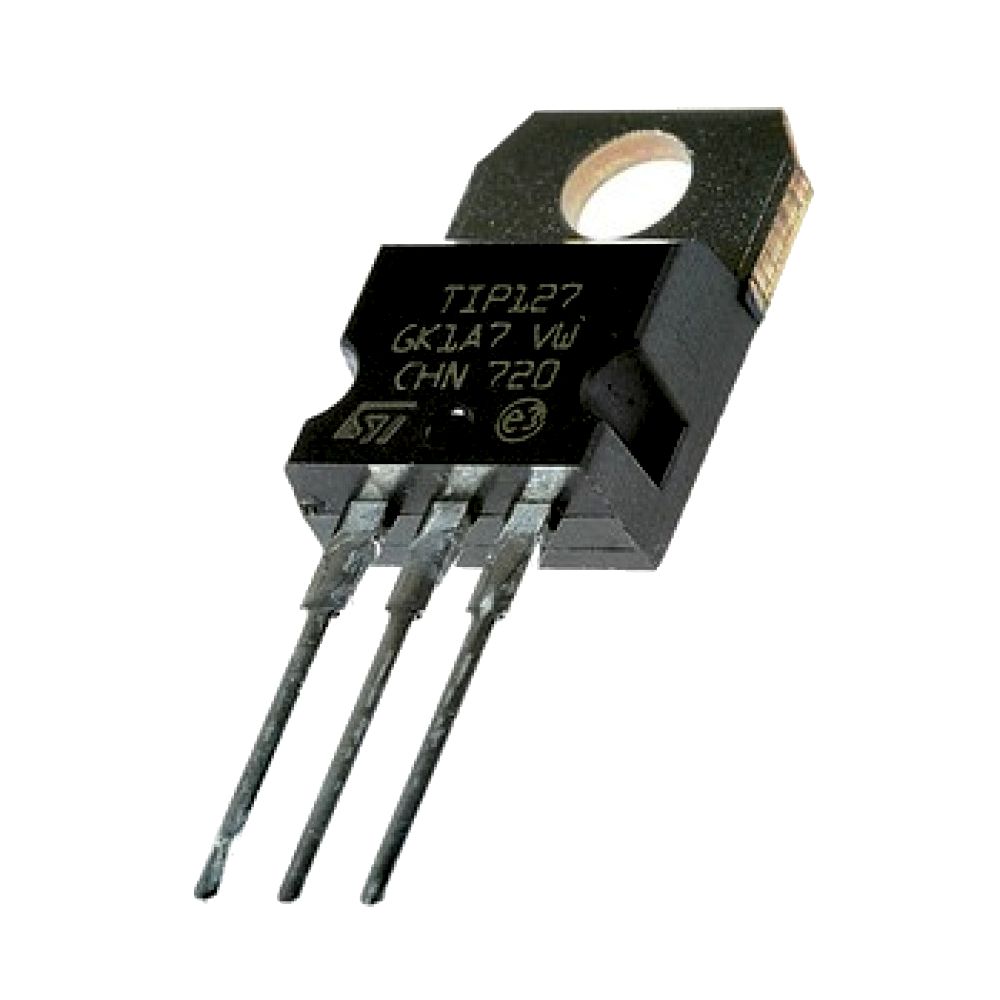

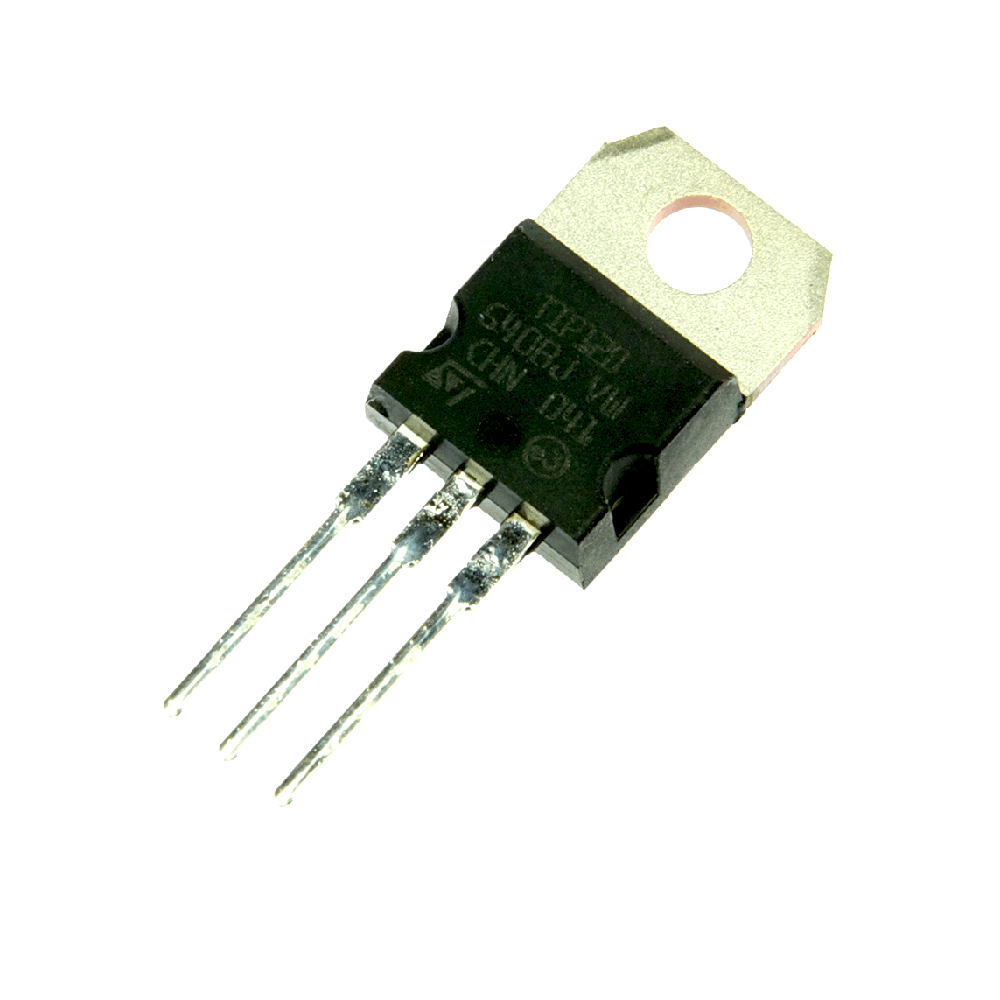

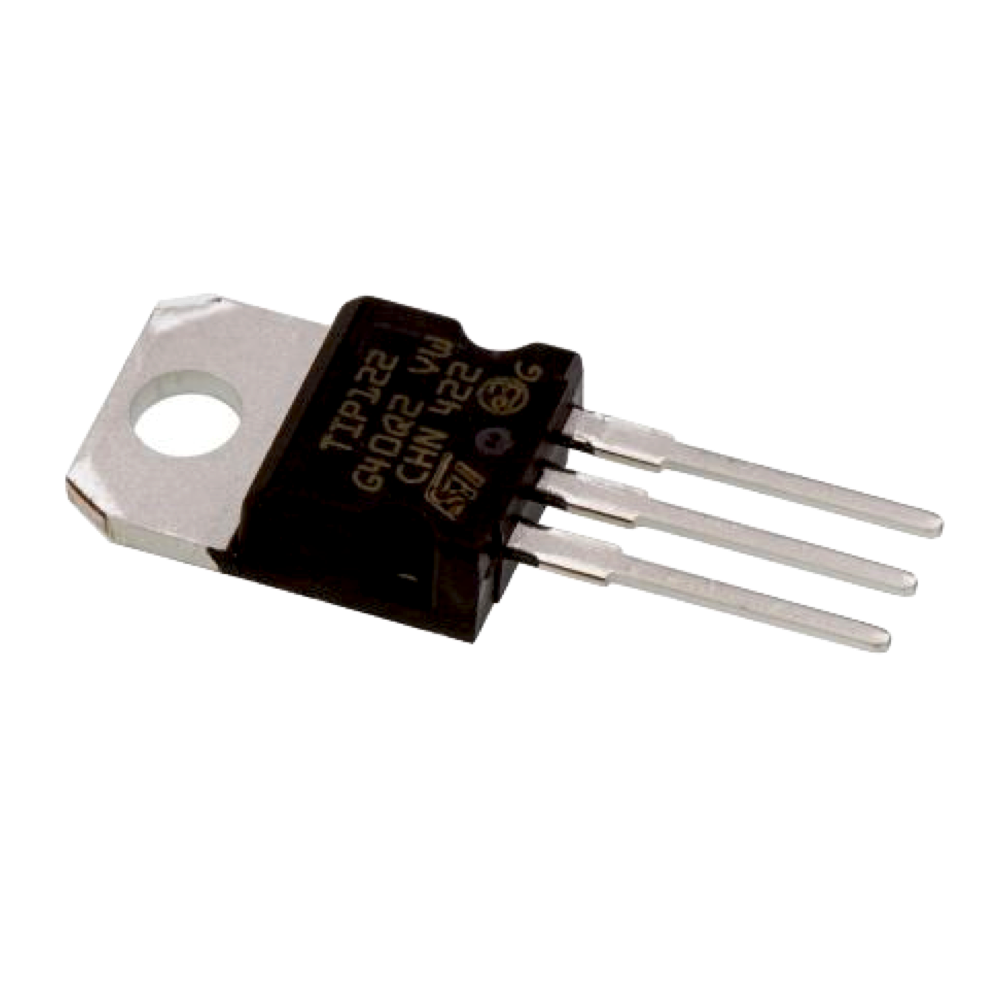

TIP120, TIP122, TIP127

Standard Product is shipped in 2 to 3 Days. Before December 10, 2019
Estimated Delivery Date will be provide on checkout page
Clear
SKU: ELEC-TIP- Categories: , , Tags: , , , , ,

Download Catalog

Share this product!

Description

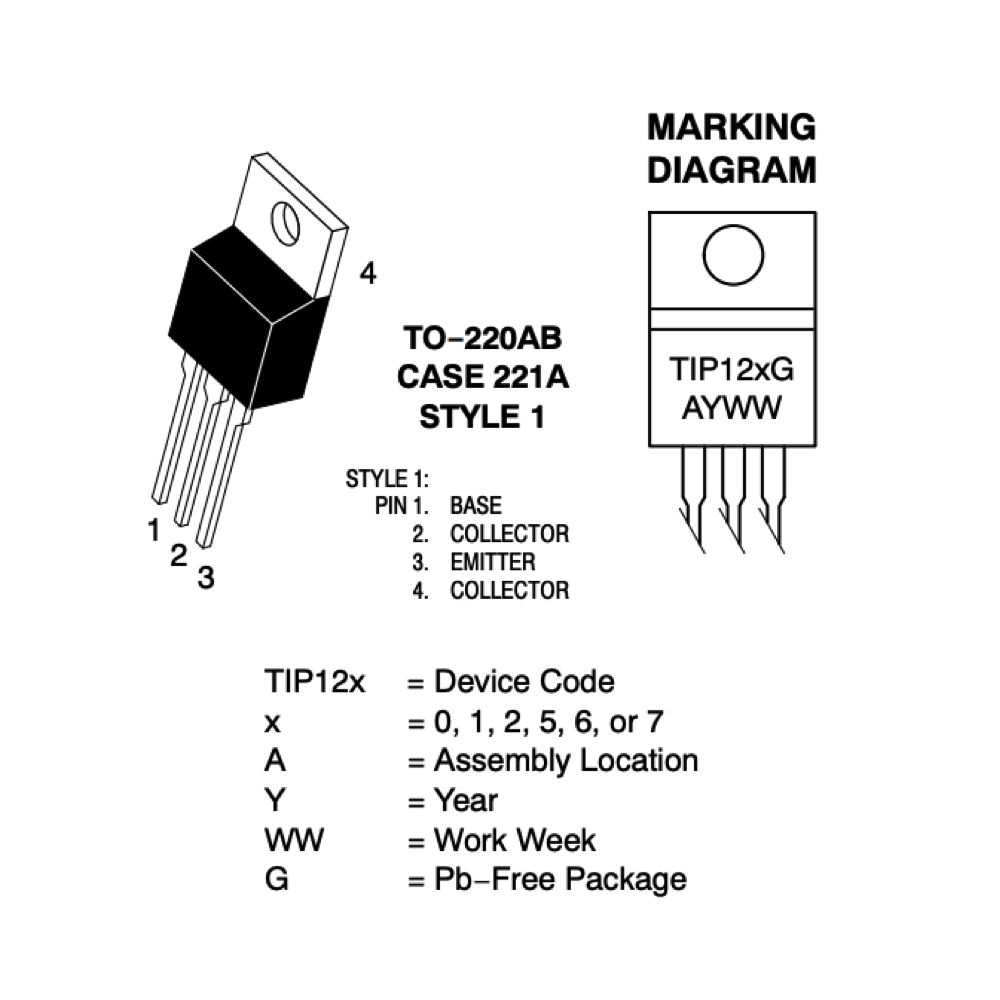

Trans Darlington NPN / PNP 60~100V 5A 3-Pin (3+Tab) TO-220AB
Designed for general−purpose amplifier and low−speed switching applications.



MAXIMUM RATINGS
Rating Symbol TIP120,
TIP125
TIP122,
TIP127
Unit
CollectorÅ|Emitter Voltage VCEO 60 100 Vdc
CollectorÅ|Base Voltage VCB 60 100 Vdc
EmitterÅ|Base Voltage VEB 5
Collector Current
Continuous
Peak
Ic 5.0
8.0
Adc
Base Current Ib 120 mAdc
Total Power Dissipation @ TC = 25°C PD 65 W
Total Power Dissipation @ TA = 25°C PD 2.0 W
Unclamped Inductive Load Energy (Note 1) E 50 mJ
Operating and Storage Junction, Temperature Range TJ, Tstg -65 to +150 °C
THERMAL CHARACTERISTICS
Characteristic Symbol Max
Thermal Resistance, JunctionÅ|toÅ|Case R JC 1.92 °C/W
Thermal Resistance, JunctionÅ|toÅ|Ambient R JA 62.5 °C/W

Additional information

Weight N/A
SemiConductor

NPN, PNP

PART No

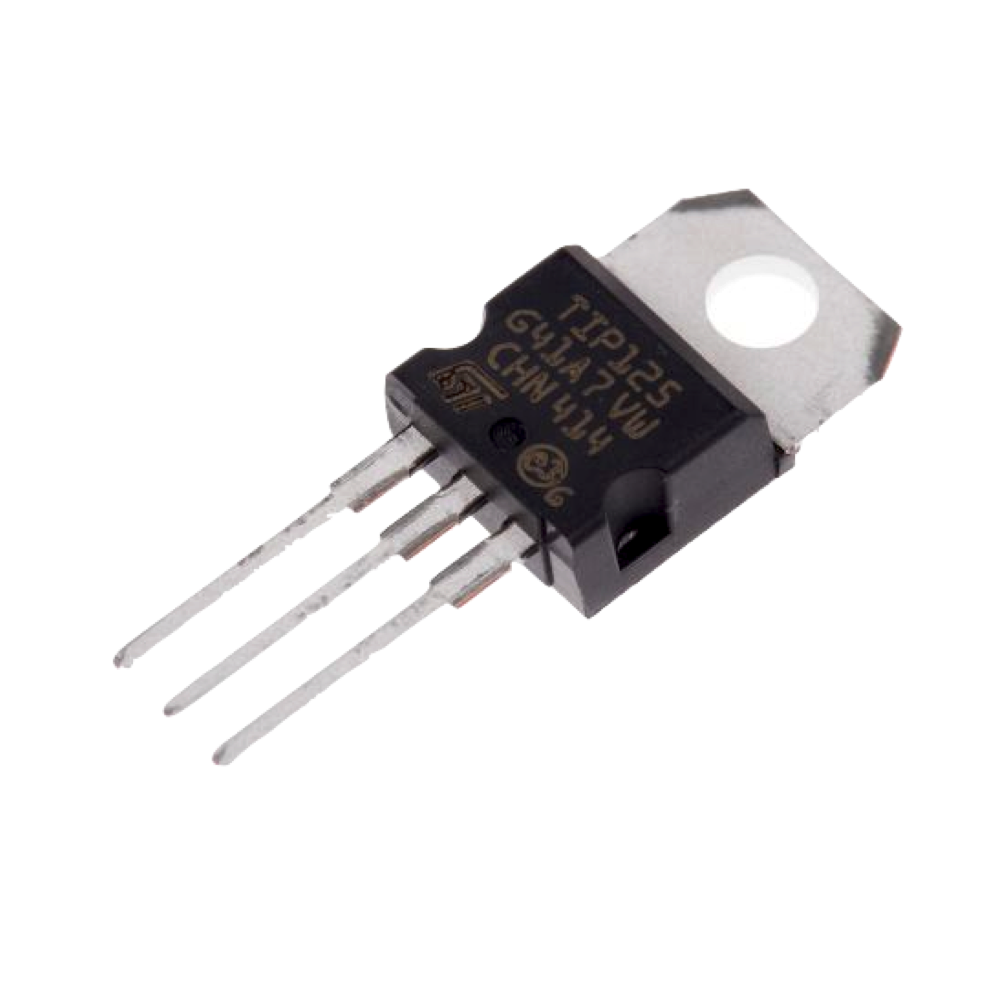

120, 122, 125, 127
