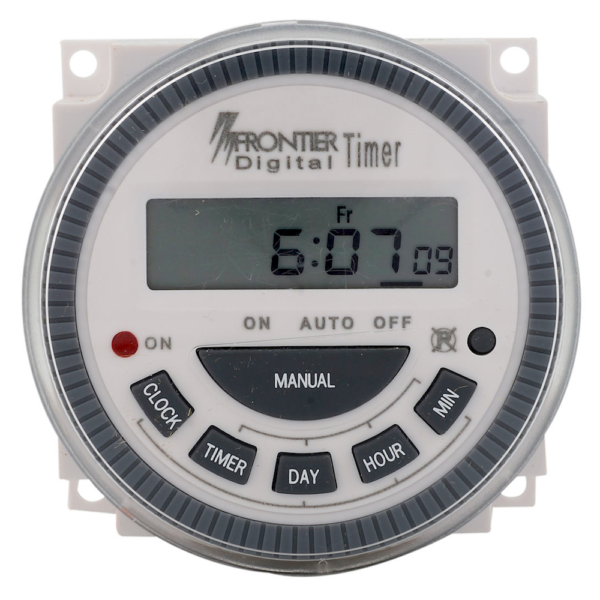

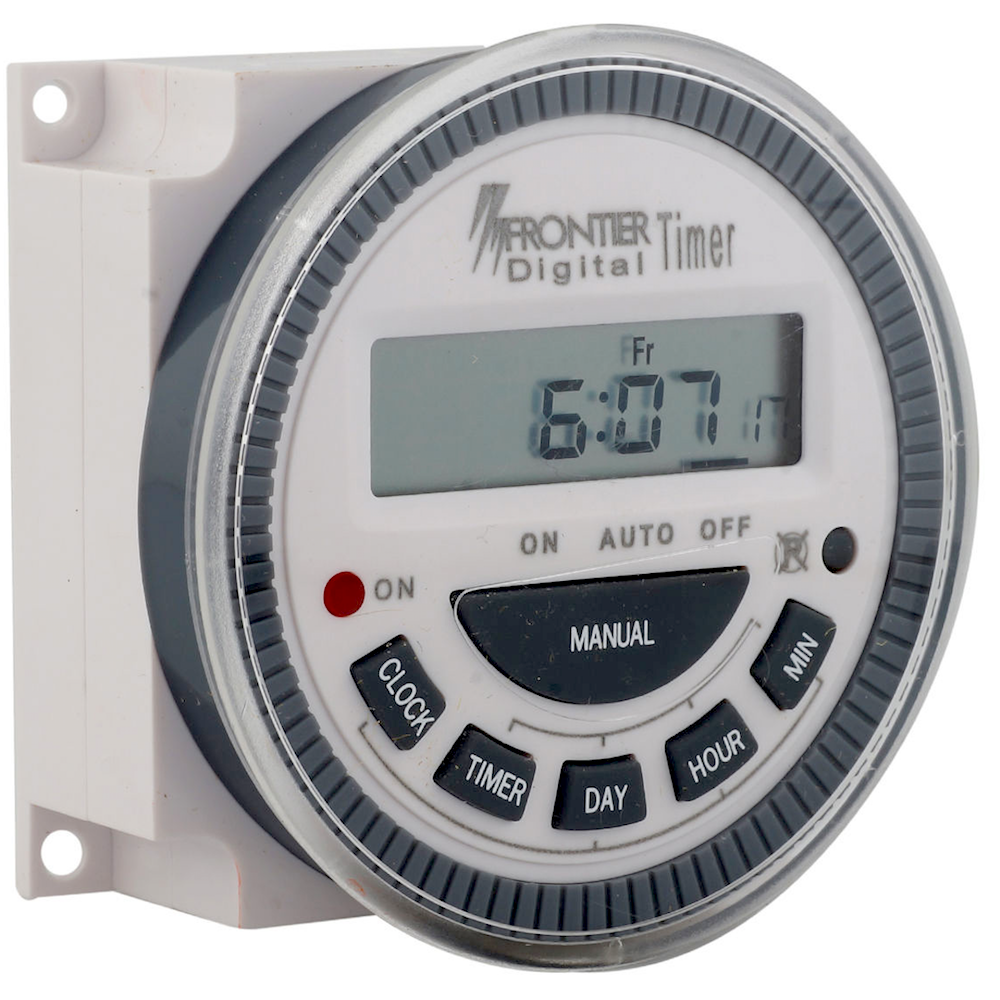

Timer TM-619 (5PIN) with New Features

650.00 Excl. of GST

  • Frontier Time Switch With Lcd Display – 5 Pin
  • 16 Times On Off Per Day, Upto 112 ON/OFF Per Week
  • New Feature: Pulse Timer / Count Down Timer  from 1Sec to 23Min59Sec
  • Microprocessor Controlled Best Quality Guaranteed.Used For Automatic Switching On/Off For Any Appliances For Irrigation / Agricultural pumps / Street Light / Signage Board /Hydroponics / Appliances
  • Accurate To The Minute Control , Superior Relay & onboard Battery CR2032
  • Voltage: 220/250 Vac Frequency:50/60 Hz Operation Temperature: 0-55 C Amps : 30A
  • Package Includes One Digital Timers. Instruction Manual


5PIN Frontier Digital Timer programmable Controller TM-619H2-2 with replaceable battery

This 24 hour timer switch suitable for water heater, Water dispensers, Street lamp, Staircase lamp, Advertising lamp boxes, Breed aquatics, Irrigation ,Agriculture, Office power auto control, in anywhere need time control in civilian, home or industrial, etc.

It can be used to set 16 programs to control ON and OFF of electric appliance in 24 hours. It can be programmed to avoid the peak of power, and it can distribute power in time limit to save energy.


– 16 ON / OFF programs can be set per day
– Easy to replace battery CR2032
– Option to select Day/Days of the week on which the programmed functions to be performed
– LED Power Indicator
– Manual over ride switch
– LCD on screen displays ON and OFF switching status
– With Replace Lithium battery CR2032, inside for memory back up
– With daily weekly and impulse programs

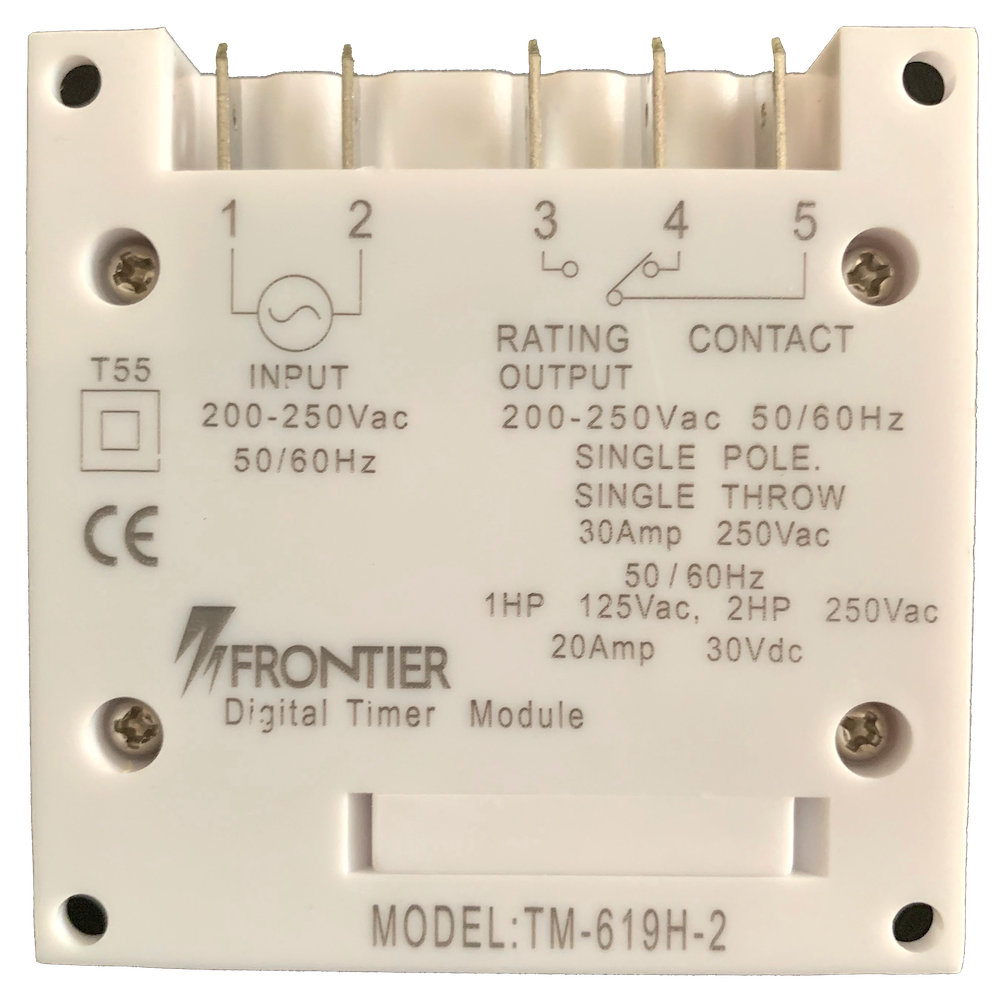

– 5PIN Time Switch With LCD Display
– Easy Connection

Technical Specifications

– Input voltage: 200 ~ 250 VAC Frequency 50/60Hz
– Contact: Single Pole – Single Throw 30 A, 250 V AC or 20 A, 30V DC
– Running Accuracy: ± 1 second / day at 20°C
– Minimum Time Setting: 1 minute
– Load – Resistive 30A, Inductive 20A
– Memory Back up – Lithium battery inside the timer

Pulse Timer: set the pulse time for 1Sec to 23Min 59Sec
Count Down Timer: set the pulse time for 1Sec to 23Min 59Sec

Read the Manual

Additional information

Weight 150 g


The product photos shown on this site are representative of the product colors. Actual product colors may vary from the images shown for the following reasons:

  1. Like any colored product, the dye shades / colors may vary from one production run to the next.
  2. The color of the product will appear different in various lighting conditions (e.g. sunlight vs. fluorescent light).
  3. Your individual monitor settings can cause the appearance of the color on the screen to differ from the actual photograph.

Safety Information

Requires assembly by Trained Electrician, Cannot be used without Installation by Electrician Hire a qualified, licensed electrician to perform any electrical Panel works. However, if you do decide to do-it-yourself, consider the following important safety warning before undertaking any home electrical project:
  1. Never attempt a project that is beyond your skill level.
  2. incorrect wiring / installation can cause electrical fires, injuries, and fatalities.
  3. 'Don't Die for DIY' Use an RCCB (residual current device). An RCCB can save your life by cutting off the power in the event of an electrical fault caused by a DIY blunder.
