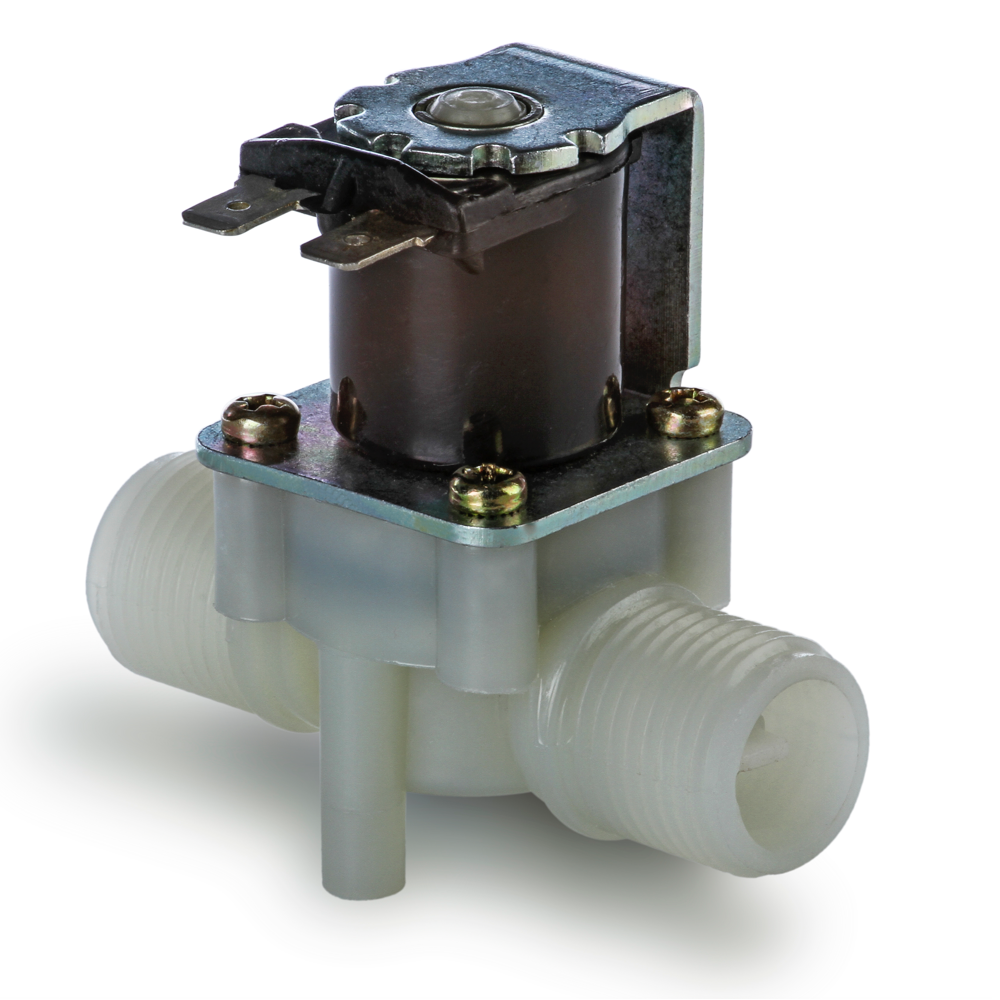

1/2 Inch Inlet / Outlet Diaphragm Solenoid Valve

425.00500.00 Excl. of GST

  • Inlet / Outlet: 1/2″ BSPM
  • Mounting: Bottom Mounting
  • Flow Rate: 30 LPM / 1800 LPH
  • Inlet Filter: Encapsulated SS mesh, 0.45 mm
  • Valve Type: Normally Closed (0.2 to 8 bar)
  • Operating Voltage: Normally Closed 12VDC / 24DC / 48VDC / 230VAC
Standard Product is shipped in 2 to 3 Days. Before October 19, 2019
Estimated Delivery Date will be provide on checkout page
Clear

Download Catalog

Share this product!

Description

Feature

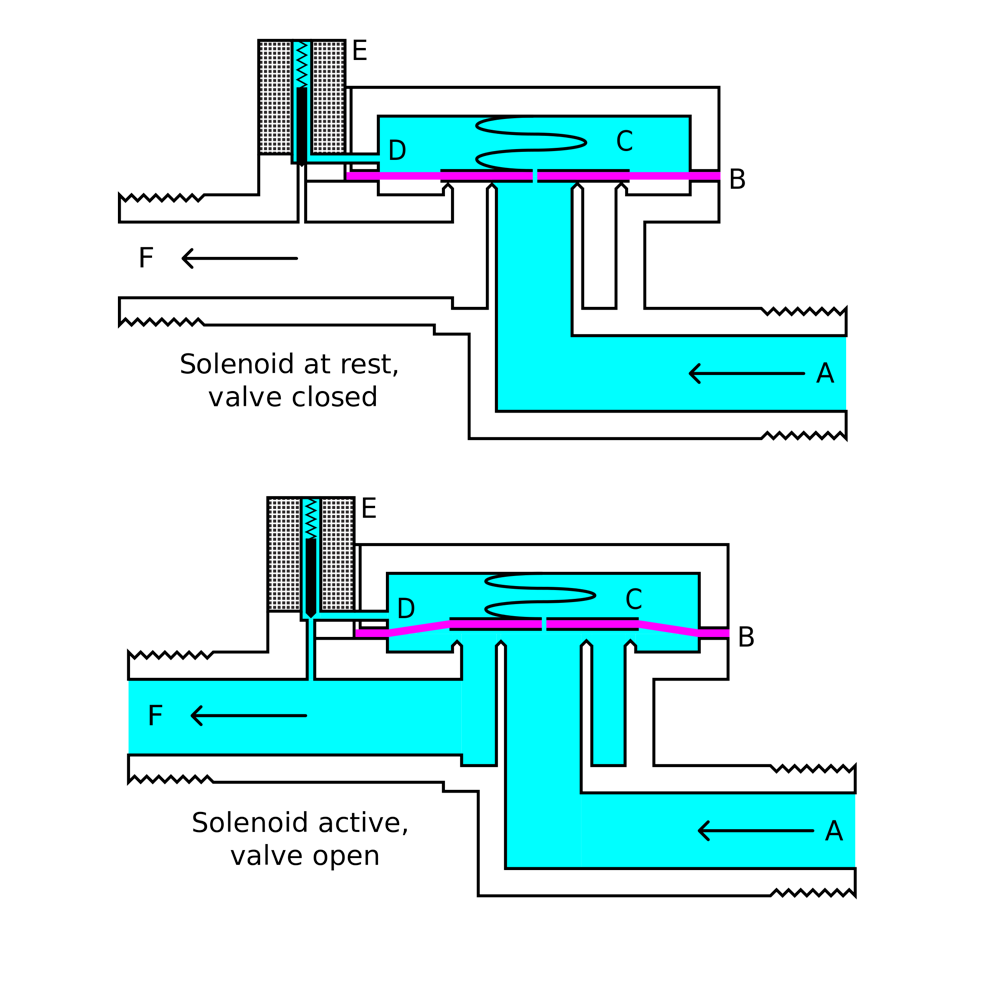

Pilot operated diaphragm water solenoid valves are available in various models and specifications, Normally closed type with 0.40 mm, inlet removable plastic filter in most models.

Applications

  • Washing machines (for water inlet / feed)
  • Domestic and Industrial water purifiers. (Inlet water control)
  • Dish washers (Water feed / inlet)
  • Feed valve for coffee and hot beverages vending machine.
  • Automatic water taps and faucets.
  • Dental equipments.
  • Farm & Garden Irrigation systems.
  • Landscape watering and management systems.
  • WC flushing systems.
  • Water Supply System & Municipal water supply.

And other applications where water is need to be controlled by solenoid valve.

Specifications

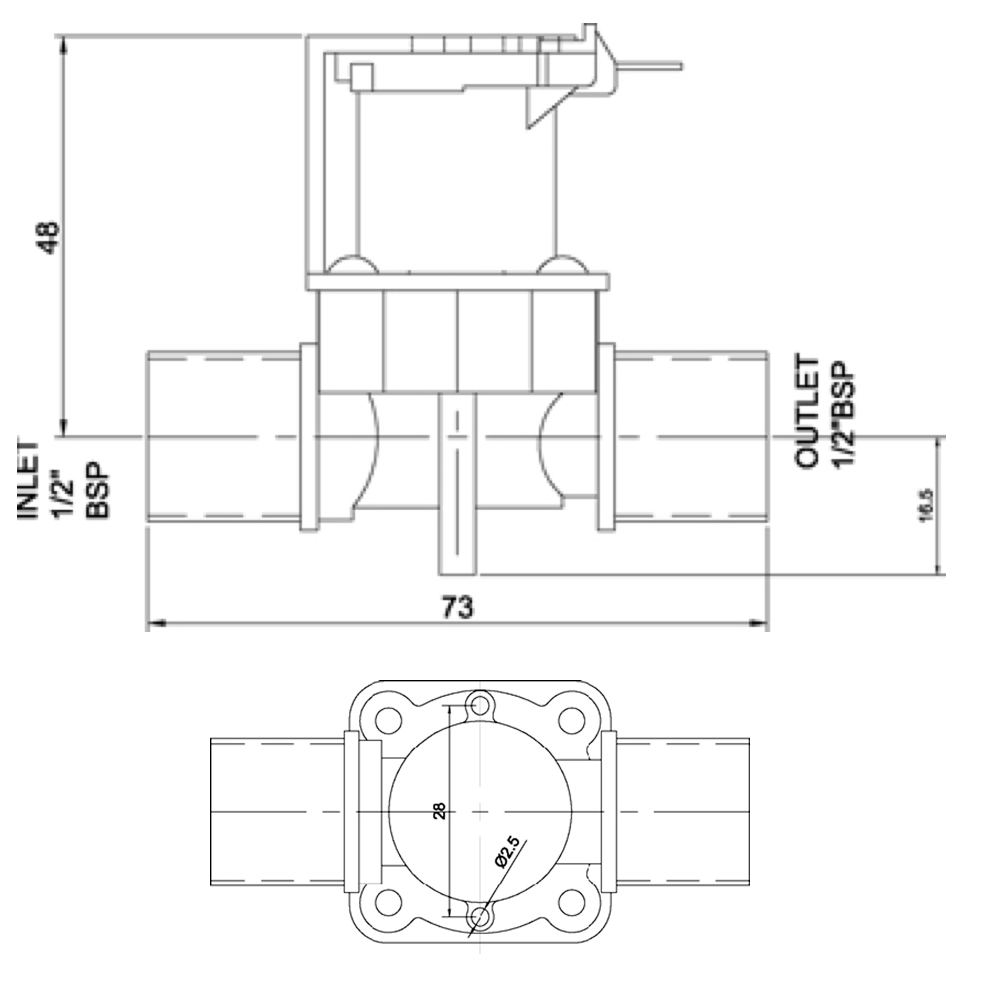

  • Inlet / Outlet : 1/2″ BSPM
  • Mounting : Bottom Mounting
  • Flow rate: 30 LPM / 1800 LPH
  • Inlet Filter: Encapsulated SS mesh, 0.45 mm
  • Valve Type : Normally Closed (0.2 to 8 bar)
  • Operating Voltage: Normally Closed 12VDC/24DC/48VDC/230VAC

Warning the Valves are for indoor use and hence when installed outdoor, ensure its protected from SUN, WIND, RAIN etc.

Additional information

Weight 250 g
Voltage

12V DC, 230V AC, 24V DC, 48V DC

Disclaimer

The product photos shown on this site are representative of the product colors. Actual product colors may vary from the images shown for the following reasons:

  1. Like any colored product, the dye shades / colors may vary from one production run to the next.
  2. The color of the product will appear different in various lighting conditions (e.g. sunlight vs. fluorescent light).
  3. Your individual monitor settings can cause the appearance of the color on the screen to differ from the actual photograph.

Safety Information

Requires assembly by Trained Electrician, Cannot be used without Installation by Electrician Hire a qualified, licensed electrician to perform any electrical Panel works. However, if you do decide to do-it-yourself, consider the following important safety warning before undertaking any home electrical project:
  1. Never attempt a project that is beyond your skill level.
  2. incorrect wiring / installation can cause electrical fires, injuries, and fatalities.
  3. 'Don't Die for DIY' Use an RCCB (residual current device). An RCCB can save your life by cutting off the power in the event of an electrical fault caused by a DIY blunder.
