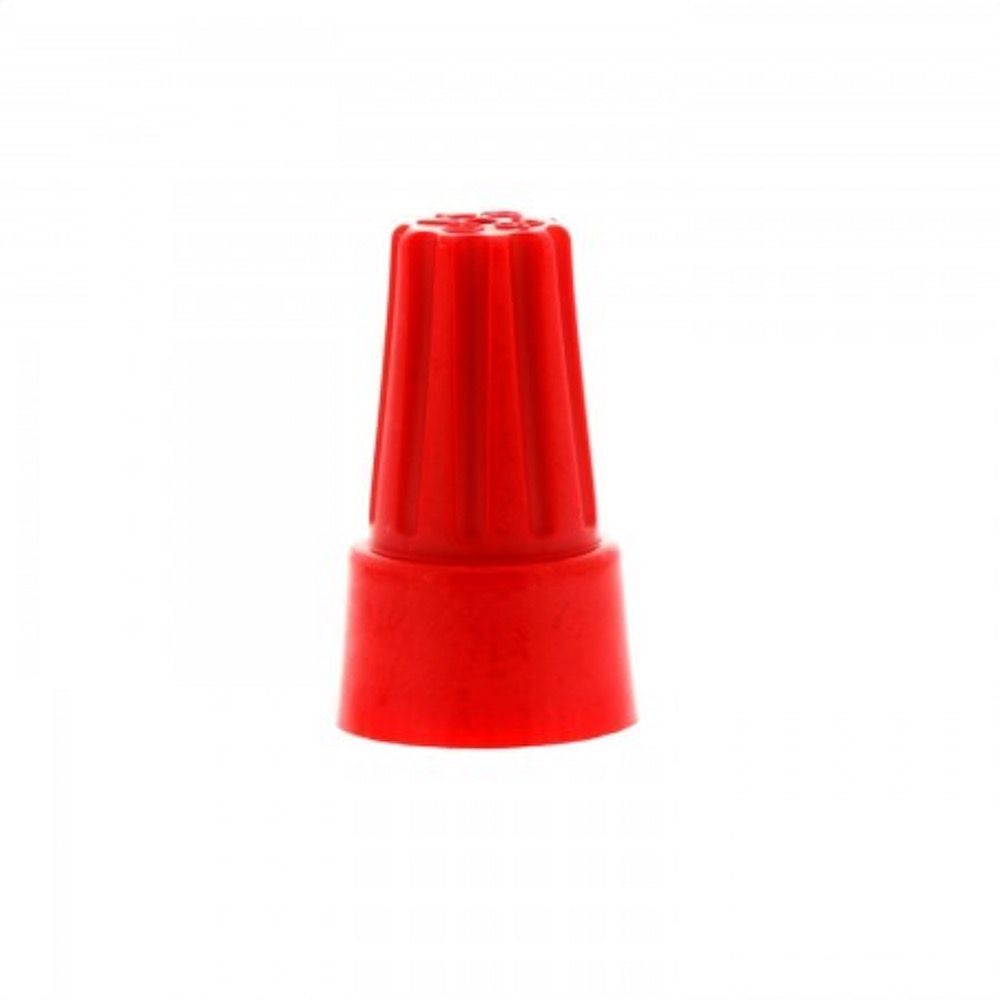

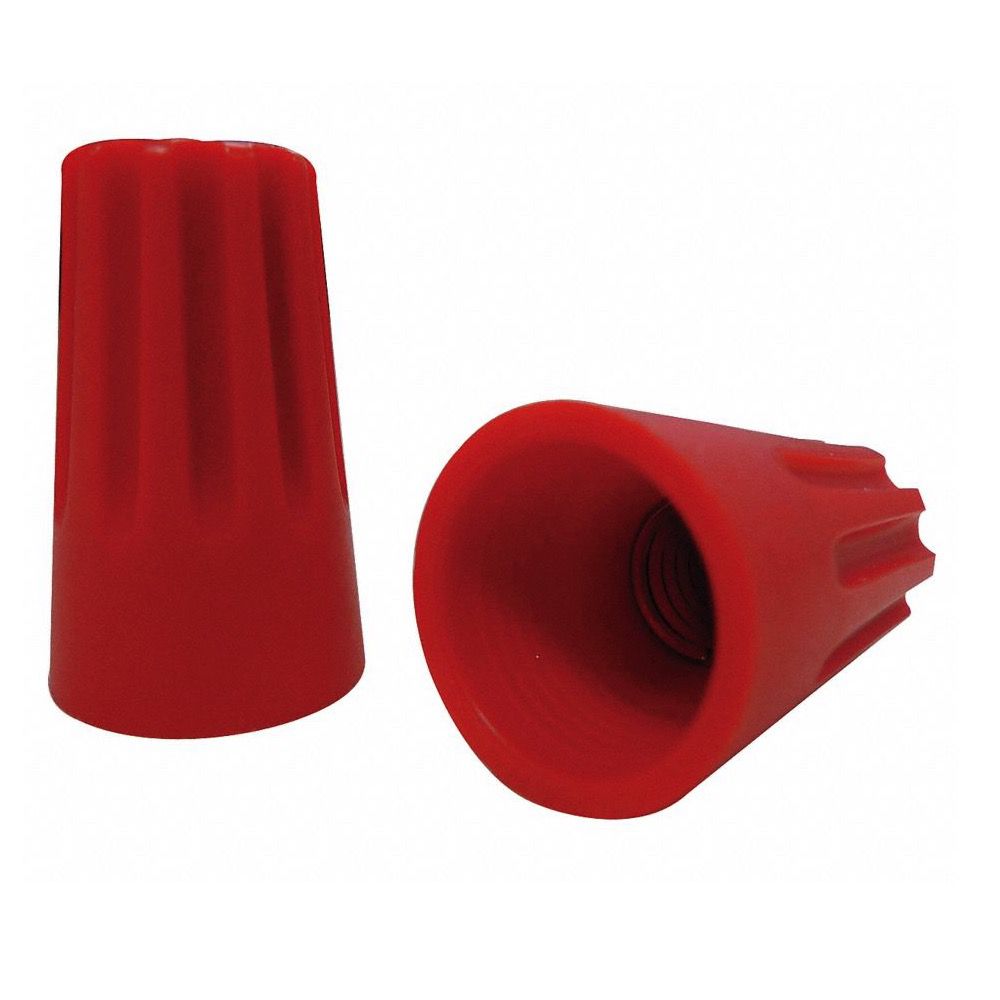

Twist Nut Electrical Wire Connector Terminals Cap Spring Insert

105.00255.00 Excl. of GST

  • Twist On Wire Connector
  • Twist Terminal
  • Max Voltage: 600VAC
  • Connect the wires, holds wires firmly
Standard Product is shipped in 2 to 3 Days. Before December 12, 2019
Estimated Delivery Date will be provide on checkout page
Clear

Download Catalog

Share this product!

Description

TWIST-ON Wire Connector is the Industry Standard for Electrical Wiring Screw on wire Connectors for Quick Assembly, 600V, Wire combinations: 22 AWG thru 14 AWG
Pressure-Type Wire Connector on the following SOLID and/or STRANDED COPPER TO COPPER CONDUCTOR wire combinations

PRODUCT FEATURES:
Fixed Precise Conical Wire Spring, No Pre-Twisting of Conductors is Required – Spring Creates its Own Thread
Reusable Screw on Wire Connector Threads On or Off splice for fast and easy circuit changes and additions
Ribbed-Cap Provides a more Secure Grip and faster fingertip starts even when hands become slippery
Deep Skirt Wire Entry Provides Protection from Flash-Over and Shorts
Threaded Funnel Entry Guides Wire Into Connector Cleanly without Strand Splaying

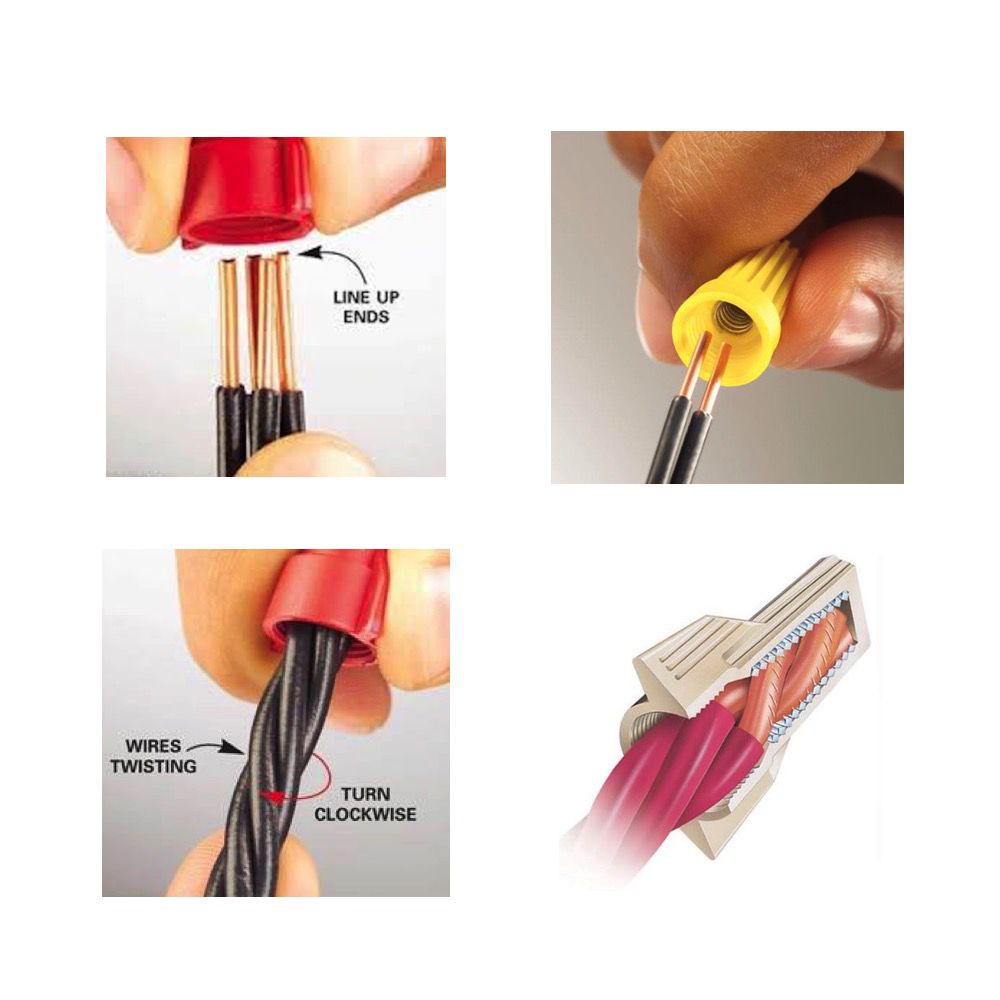

INSTALLATION INSTRUCTIONS:
1. Turn off power before installing or removing connectors.
2. Strip solid wire about 9MM and smaller wires, about 12MM.

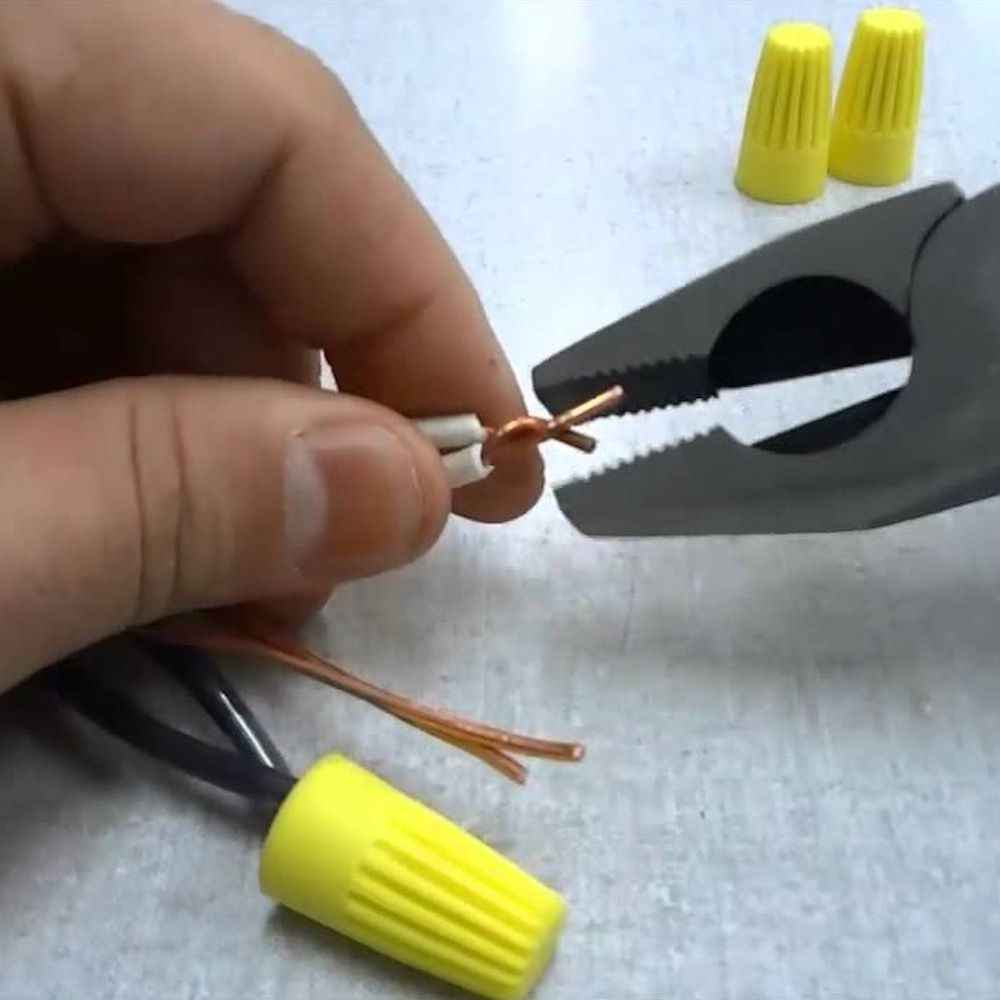

3. Pre-twisting if necessary. Hold stripped wires together with ends even. Lead stranded wires slightly.
4. Align any frayed strands or conductors.
5. Push wires into connector and screw on until two twists are visible in wires.

Watch the video on how to use:

Additional information

Weight 250 g
Dimensions 15 × 10 × 10 cm
Pack of

Pack of 10, Pack of 20, Pack of 5

Disclaimer

The product photos shown on this site are representative of the product colors. Actual product colors may vary from the images shown for the following reasons:

  1. Like any colored product, the dye shades / colors may vary from one production run to the next.
  2. The color of the product will appear different in various lighting conditions (e.g. sunlight vs. fluorescent light).
  3. Your individual monitor settings can cause the appearance of the color on the screen to differ from the actual photograph.

Safety Information

Requires assembly by Trained Electrician, Cannot be used without Installation by Electrician Hire a qualified, licensed electrician to perform any electrical Panel works. However, if you do decide to do-it-yourself, consider the following important safety warning before undertaking any home electrical project:
  1. Never attempt a project that is beyond your skill level.
  2. incorrect wiring / installation can cause electrical fires, injuries, and fatalities.
  3. 'Don't Die for DIY' Use an RCCB (residual current device). An RCCB can save your life by cutting off the power in the event of an electrical fault caused by a DIY blunder.
