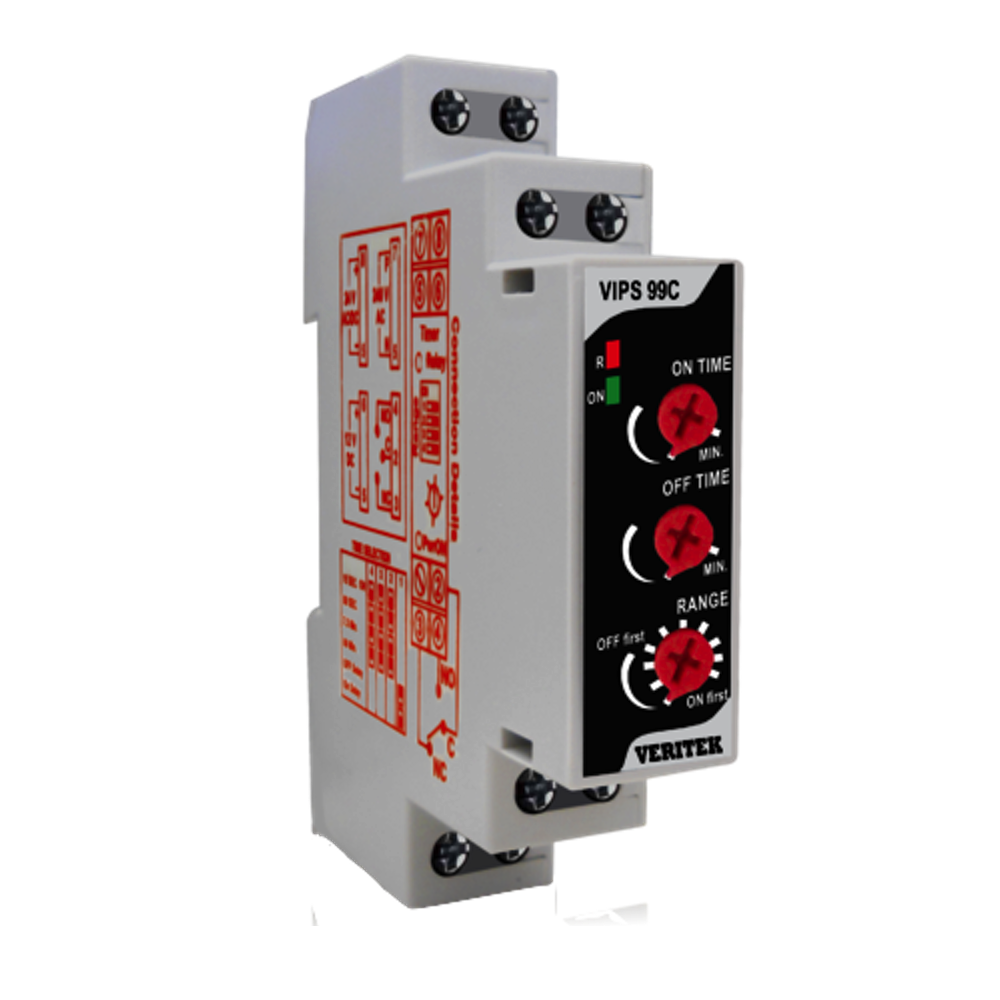

CYCLIC TIMER Equal – Unequal Time Cycle

700.00 Excl. of GST

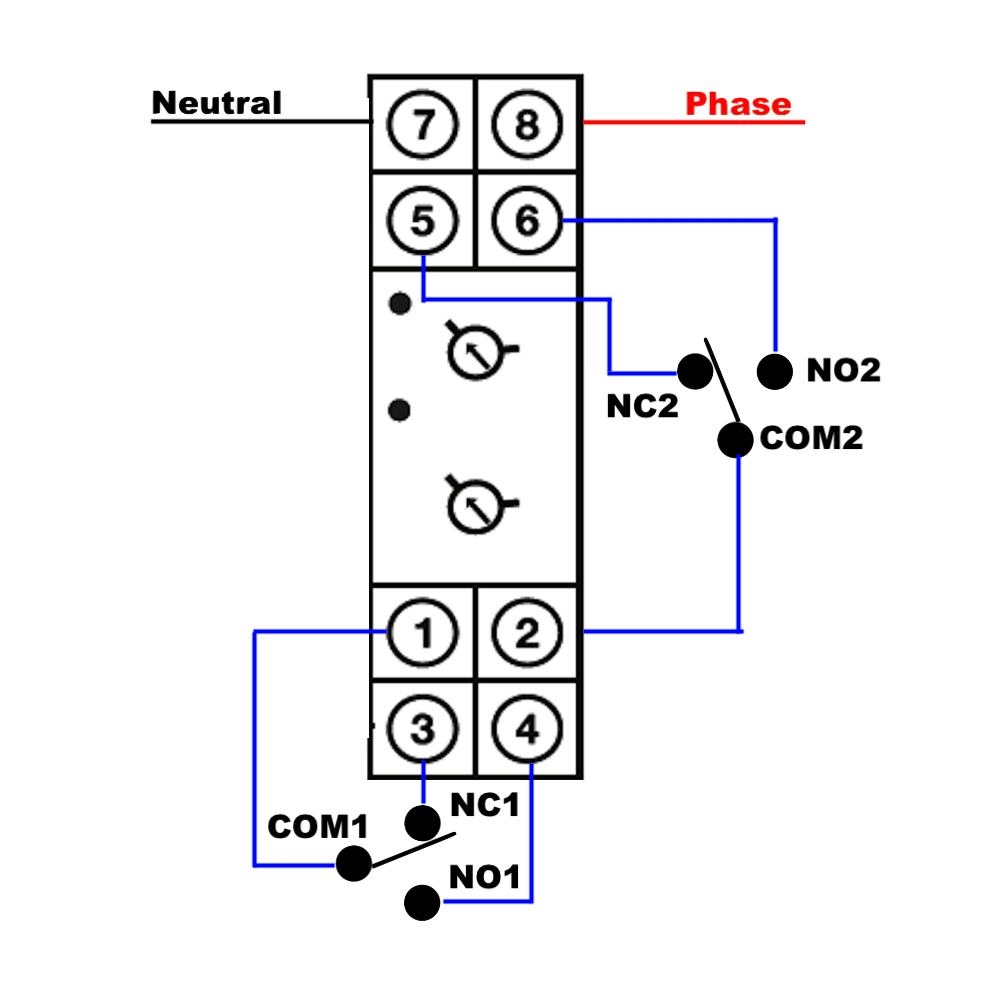

Output Contact  DPDT (2 C/O) and SPDT (1 C/O ) Optional
Contact Rating  5 AMP 230VAC
ON Time Ranges 0 – 1 SEC
0 – 10 SEC
0 – 1 MIN
0 – 10 MIN
0 – 3 Hour

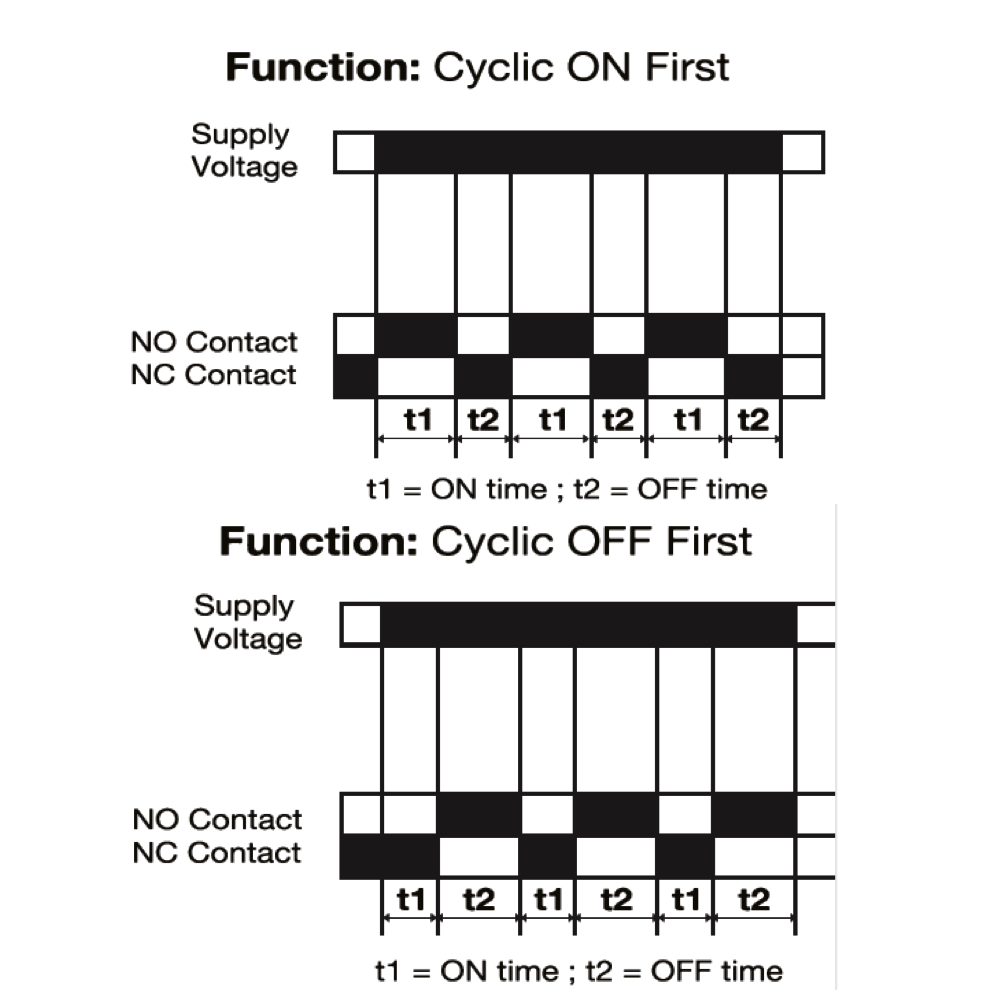

Modes  Cyclic ON first / Cyclic OFF first
LED Indication  Power ON & Relay ON
Auxiliary Supply  230V AC & 24V AC/DC
110V AC & 24V AC/DC
Supply Frequency  50/60 Hz

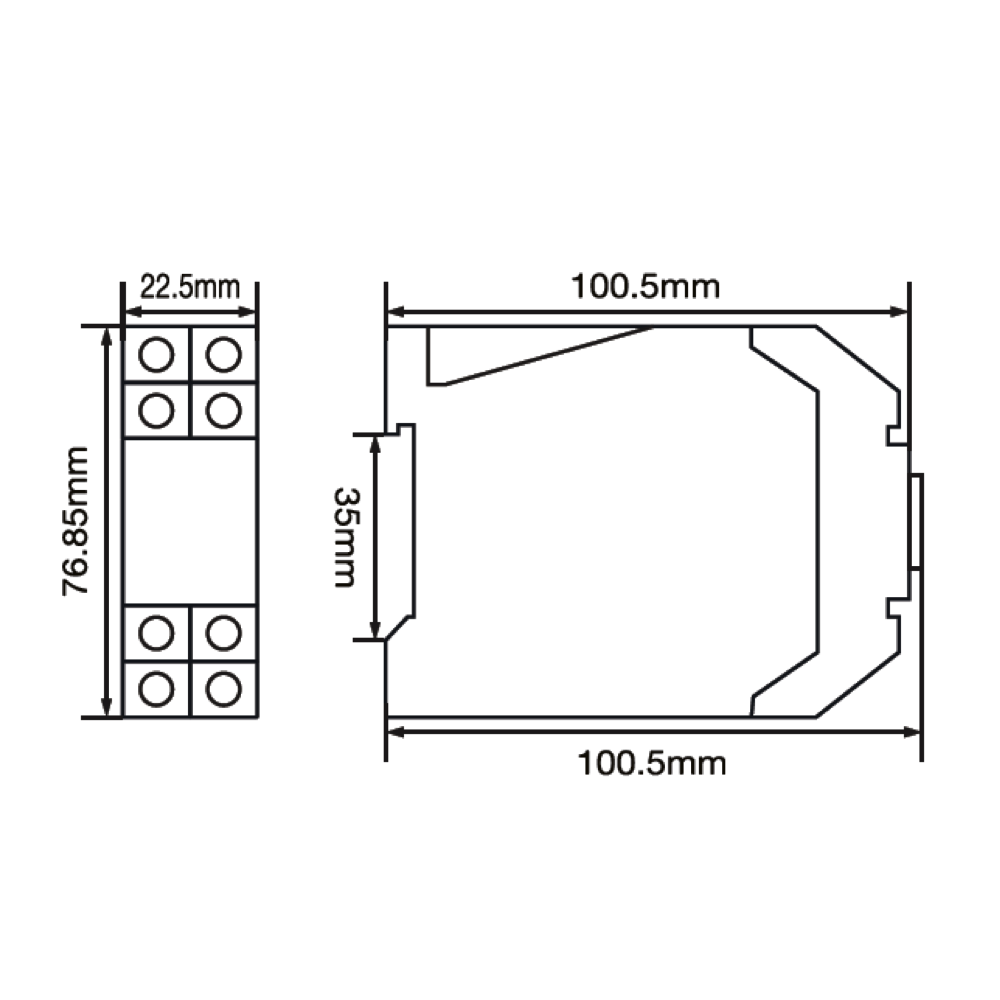

Dimension  22.5 x 77 x 105 mm (WXLXH)

Download Catalog

Share this product!

Description

Application for Cyclic Timer

The Timers are used in Control Panel, Automation Panels, Feeders / Motor, Generator, Transformer, Electrical Distribution, etc, where a specific delay is required for ON of the load or OFF of the load after a specific Interval.

Features for the Cyclic Timer

  • Cyclic with unequal ON & OFF Time
  • Multiple time ranges
  • LED status indicator : Power ON, Relay ON
  • Din rail mount
  • Automatic compensation for variations
  • Easy adjustments in desired automation
  • Reduction in inventory cost (up to 80%)
  • Easy switching reliability
  • High mechanical endurance of operation ensures trouble free operation

SPECIFICATION

Output Contact  DPDT (2 C/O) and SPDT (1 C/O ) Optional
Contact Rating  5 AMP 230VAC
ON Time Ranges 0 – 1 SEC
0 – 10 SEC
0 – 1 MIN
0 – 10 MIN
0 – 3 Hour
Modes  Cyclic ON first / Cyclic OFF first
LED Indication  Power ON & Relay ON
Auxiliary Supply  230V AC & 24V AC/DC
110V AC & 24V AC/DC
Supply Frequency  50/60 Hz
Dimension  22.5 x 77 x 105 mm (WXLXH)

Additional information

Weight 150 g
