09AMPS 3 Pole Contactor with AUX Contacts 1NC & 1NO for On/Off Control of Loads

499.00 Excl. of GST

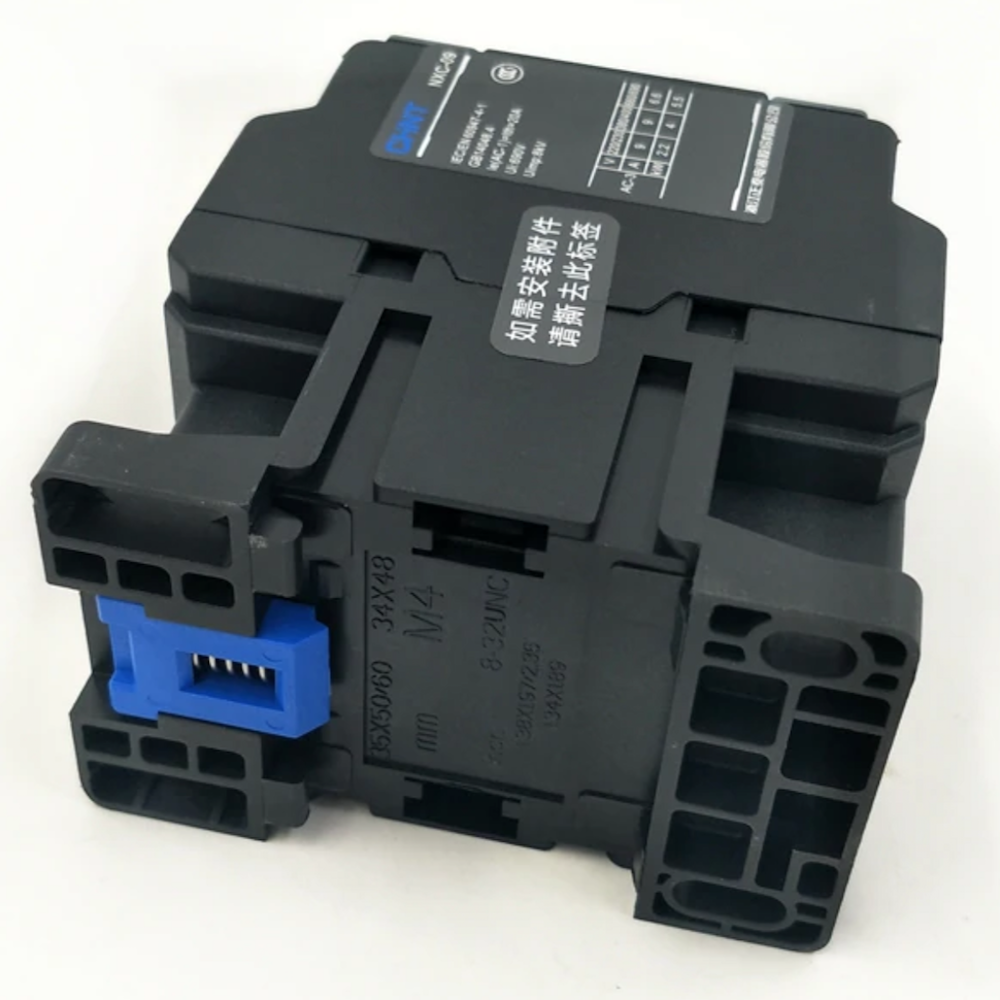

Mounting Position : DIN Rail / Mounting Screw
MAX Current Rating : AC3: 09A (Normal Inductive Load Current)
Coil Insulation : 690V
Coil Voltage : 220VAC
Model : 3P-NXC-09
Standard Product is shipped in 2 to 3 Days. Before November 22, 2019
Estimated Delivery Date will be provide on checkout page

Download Catalog

Share this product!

Description

3P  Three Pole Contactor with AUX Contacts (1NC & 1NO) for Power Switch, On/Off, of Motors, Heating Elements, Street Lights, HVAC, Fans and Compressor

Guarantee the steady operation of the system With 70% – 120% pull-in voltage range, which can avoid the voltage fluctuation in grid, also operates steadily in the peak power demands.

Equipped with more standard auxiliary contacts, to meet several application requirements Standard equipped with 1NO+1NC, which can optimize the inventory and cost performance.

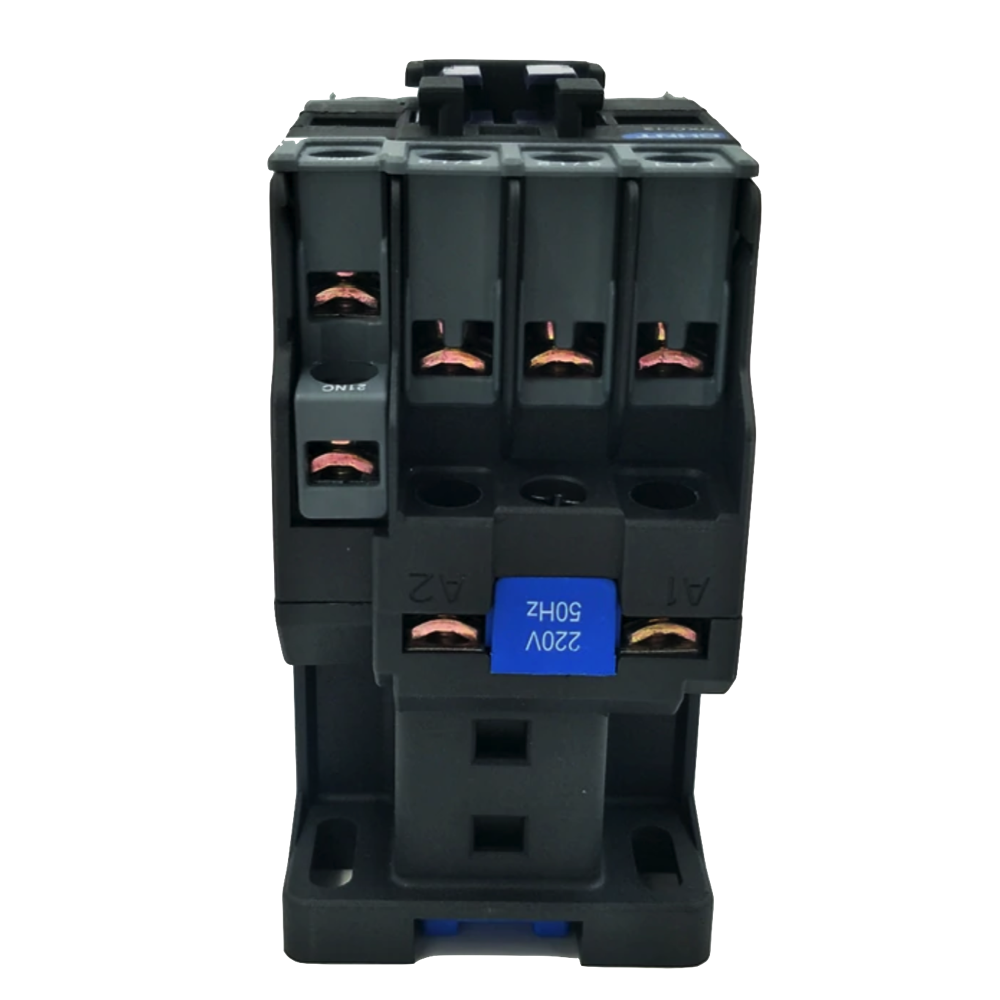

Ergonomically design, easy to handle and maintain Integrated label cover, with double coil terminal blocks, which can fast be connected without tool

Absolute adaptability, with steady and reliable operation in extreme conditions -35°C/+70°C operating temperature range. Meets several applications requirements.

Additional information

Weight 350 g
